OPTIONS

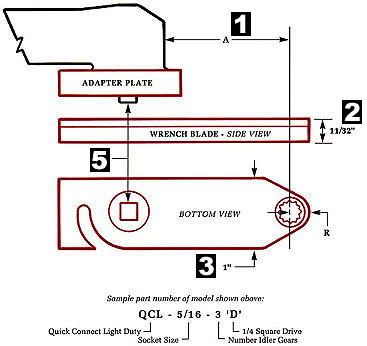

 "A" dimension can be modified to any length to suit existing application (increasing or decreasing the number of idler gears).
 Thickness can be modified (slimmed down if necessary for clearance above fastener).
 Width dimensions can be contoured or modified to suit difficult access applications.
 Sockets can be manufactured to any length desired for recessed or difficult reach applications.
 Standard 1/4 square female drive to spindle. Other size options on request.
 Standard sockets for QCL wrench blades are 12 point thru (fractional) and shouldered 6 point hex millemeter unless otherwise specified.
 Socket drive choices:
Fractional Hex
Fractional 12 point
Millimeter Hex
Shouldered
Thru
Threaded
Spline
Allen Drives
Square Drives
Male Drives
Hex Key
Solid Core Magnetic
Brimatco Corporation
P.O. Box 88
1486 Highland Ave.
Cheshire, CT 06410
Phone: 203-272-0044
203-272-1859
203-272-1850
Fax: 203-272-2256
E-mail:
sales@brimatco.com
|
|
0-140 inch lbs.
(Quick Connect Light Duty)
MODEL
TYPE |
PART NUMBER
|
TORQUE
MAX.
|
A
|
R
|
SOCKET SIZES
   |
NO. IDLER
GEARS * |
SQ.DR. |
INCH/
LBS.
|
N.M.
|
|
QCL
|
1/8-3/16-1/4
4mm-5mm-6mm |
1
2
3
|
1/4
|
70
60
50
|
8
7
6
|
.622
1.222
1.822
|
.242 |
9/32-5/16
7mm-8mm |
1
2
3
|
90
80
70
|
10
9
8
|
.647
1.247
1.847
|
.268 |
11/32-3/8
9mm |
1
2
3
|
100
90
80
|
11
10
9
|
.685
1.285
1.885 |
.307 |
7/16
10mm-11mm |
1
2
3
|
120
110
100
|
14
12
11
|
.734
1.334
1.934 |
.345 |
|
1/2
12mm-13mm
|
1
2
3
|
130
120
110
|
15
14
12
|
.766
1.366
1.966 |
.385 |
|
9/16
14mm
|
1
2
3
|
140
130
120
|
16
15
14
|
.812
1.412
2.012 |
.427 |
* More than 3 idler gears available per customer request
|
|
