Brimatco- QCEH-SP-Quick Connect Extra Heavy Duty Special

OPTIONS

"A" dimension can be modified to any length to suit existing application (increasing or decreasing the number of idler gears).

Thickness can be modified (slimmed down if necessary for clearance above fastener).

Width dimensions can be contoured or modified to suit difficult access applications.

Sockets can be manufactured to any length desired for recessed or difficult reach applications.

Standard 1/2 square female drive to spindle. Other size options on request.

Standard sockets for QCEH-SP wrench blades are shouldered 6 point hex unless otherwise specified.

Socket drive choices:

Fractional Hex
Fractional 12 point
Millimeter Hex
Shouldered
Thru
Threaded
Spline
Allen Drives
Square Drives
Male Drives
Hex Key
Solid Core Magnetic

Brimatco Corporation
P.O. Box 88
1486 Highland Ave.
Cheshire, CT 06410
Phone: 203-272-0044
203-272-1859
203-272-1850
Fax: 203-272-2256
E-mail:
sales@brimatco.com

60-74 ft. lbs.
(Quick Connect Extra Heavy Duty Special)

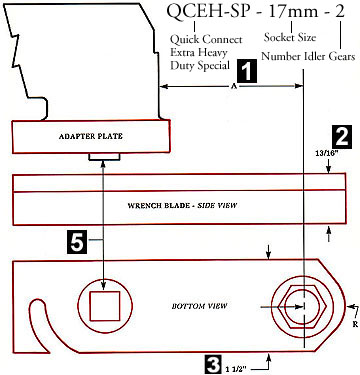

Sample part number of model shown below:

MODEL
TYPE PART NUMBER TORQUE
MAX.
A R

SOCKET SIZES
NO. IDLER
GEARS * SQ.DR. FOOT/
LBS. N.M.

QCEH-
SP 1/8 thru 1/2
4mm thru 13mm 1
2
3
1/2 63
61
60
85
83
81

1.100
2.200
3.300
.508

14mm
1
2
3
65
63
61
88
85
83

1.125
2.225
3.325
.533

9/16, 5/8
15mm -16mm 1
2
3
68
66
64
92
90
87
1.175
2.275
3.375 .584

11/16 -3/4
17mm -18mm -19mm 1
2
3
71
69
67
96
94
91
1.250
2.350
3.450 .663

13/16 -7/8
20mm -21mm -22mm
1
2
3
74
71
69
100
96
94
1.300
2.400
3.500 .710

* More than 3 idler gears available per customer request
