B-Series Brimatco wrench blades are custom built to suit a dedicated application, totally to the customers specifications. Although highly individual, B-Series blades are in one way or another, modifications of our basic quick-connect line of gear driven wrenches. This, as well as the fact that new designs and custom applications are routine work for us, means that each B-Series blade encompasses the same degree of quality and serviceability as our "standard" products.
Once manufactured, the custom product is given its own part number in the B-Series family. The examples shown here represent B-Series blades in their simplest form. |
Brimatco Corporation
P.O. Box 88
1486 Highland Ave.
Cheshire, CT 06410
Phone: 203-272-0044
203-272-1859
203-272-1850
Fax: 203-272-2256
E-mail:
sales@brimatco.com
|
|

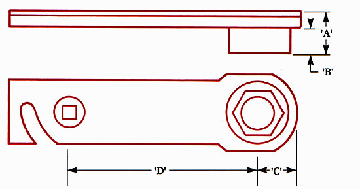

Customer Request:
- 16 ft/lb torque
- 3/8 square drive
- 13mm 6 point thru socket
- "A" .375 max. thickness
- "B" .900 Min. depth
- "C" 1.000 max. width
- "D" 2.000 min. depth
Wrench blade
manufactured -B342
|
|

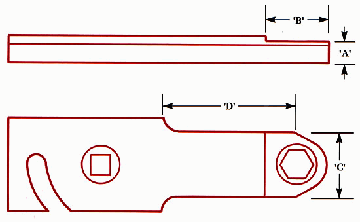

Customer Request:
- 50 in/lbs torque
- 1/4 square drive
- 3/4 hex shouldered socket
- "A" .750 max. thickness
- "B" .375 extended socket
- "C" .650 max. radius
- "D" 2.800 min. depth
Wrench blade
manufactured - B411
|
|
